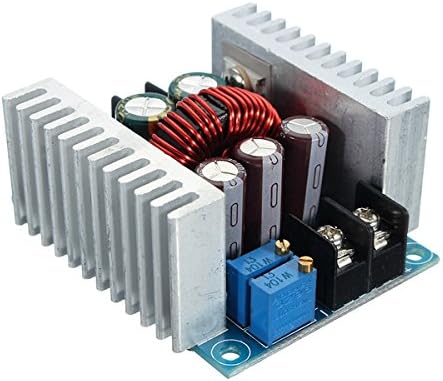

ILS - DC 6-40V To 1.2-36V 300W 20A Constant Current Adjustable Buck Converter Step Down Module Board With Short Circuit Protection Function

Description

Specifications:Colour: SilverMaterial: MetalSize: Approx. 60 x 52 x 27 mm/2.36 x 2.05 x 1.06 & #& #Input Voltage: DC 40 V (10 V to 40 V is suggested)Output Voltage: DC 1.2 – 36 VOutput Current: 20 A (Max.), 15 A (Suggested)Efficiency:% (24 V to 12 V, 20 A)Output Ripple: ≤ 50mVWiring Method: TerminalShort circuit protection: Self Recovery (not short circuit for a long time)Vo +: Output positiveVo: Output negativeIn +: Input positive- Available in: input negativeCV: Output Voltage adjustmentCC: Output current adjustmentEn: enable, low voltage level shut off output – Suspension, high voltage level is effectiveWhen input and output is common grounded, no -Load CV output Constant Voltage, CC OUTPUT constant currentWorking Tempreture: -10 °C – 75 °CFeatures:With a wide input voltage range from 6 V to 40 V, the step down converter can accurately adjust output voltage and currentThe efficiency can be up to%, measured at 20 A, converting 24 V to 12 VDesigned with 75 V/80 A Large Current Dual Mos tubeThe Buck Module has 2 heat sink that could enhance heat dissipationWiring is convenient with these large current 30 A screw terminalsInput and output Use high frequency low resistance electrolytic capacitor, low ripple, stable outputStable and reliableFine workmanship and durableBox Contents:1 x 300 W 20 A adjustable step down converter module Review: recht effizienter step down Wandler. Bringt von 40V Input auf 20...35V Output auch dauerhaft 300W. Die Kühlbleche sollte man dafür vergrößern. Die Schraubklemmen sind etwas klein um Kabel mit dem eigentlich notwendigen Querschnitt (zB 2.5mm²) für 10...15A zu verwenden. mit längeren Schrauben kann man sich da behelfen. Review: E' da un anno che è in funzione, lo uso per alimentare delle schede di domotica, ingresso 24 V uscita regolata a 12 V assorbimento 2,5 A, poi un mesa fà ho collegato una telecamera l'assorbimento è salito di notte con infrarossi accesi a circa 3,5 A, considerando che 24-12=12x3,5=42W di dissipazione del finale il dissipatore raggiunge un temperaturra di 52°C e oltre andando in protezione. In conclusione la descrizione esatta doveva essere: convertitore step down max 30W dissipata dal finale (Vin-Vout) x corrente assorbita
