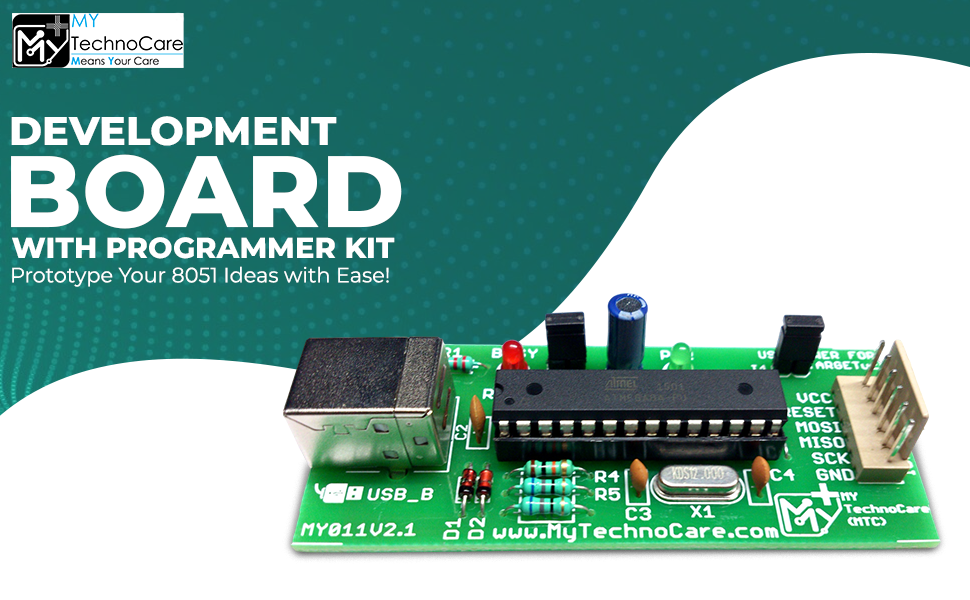

MY TechnoCare 8051 Development Board with AVR USB ASP ISP Programmer Kit(Support ATmega,89S51/XX,89S8252 Chip etc)|Obboard MAX232,AT89S52 ATMEL Microcontroller 40-Pin IC|Embedded System Project Module
Product ID: 217867023
Secure Transaction
Details
- BrandMY TechnoCare
- Model NameMY8051 with
- CPU Speed11.05 MHz
- Connectivity TechnologyRS232 DB9
- Included Components1 x 6 pin & 1
⚡5V USB Power, No External Supply Needed

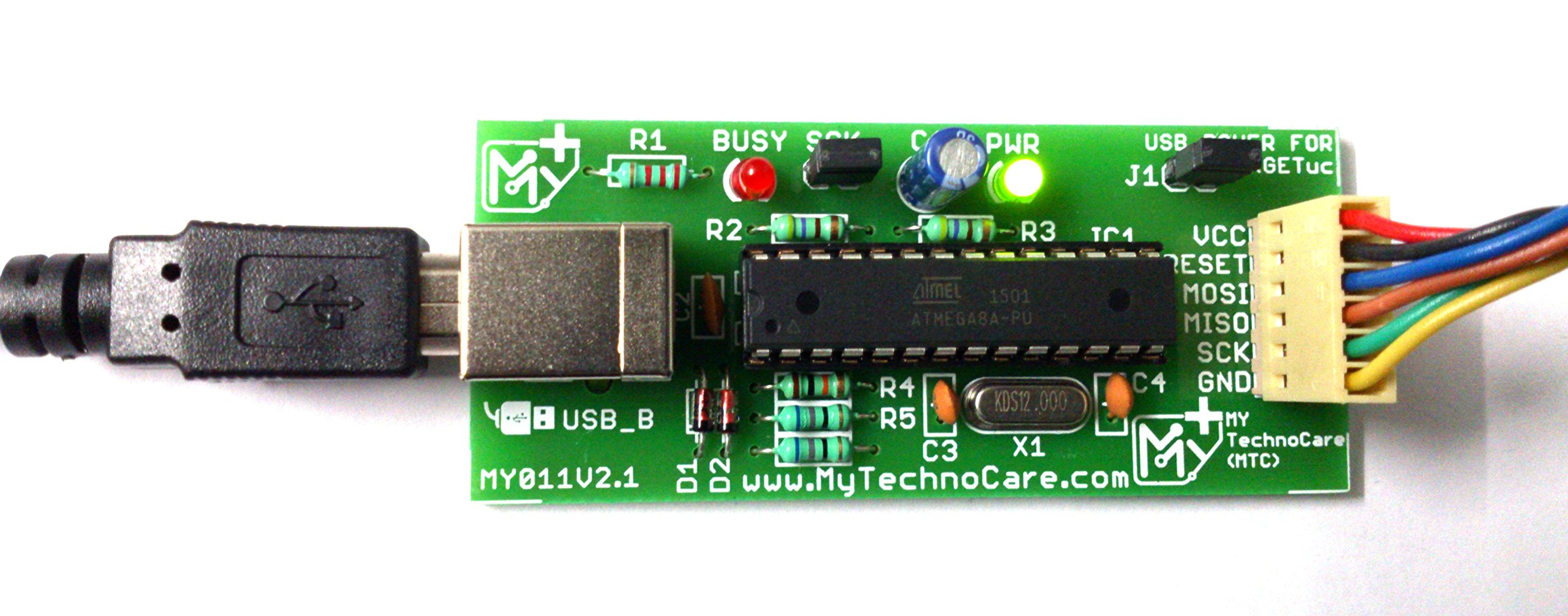

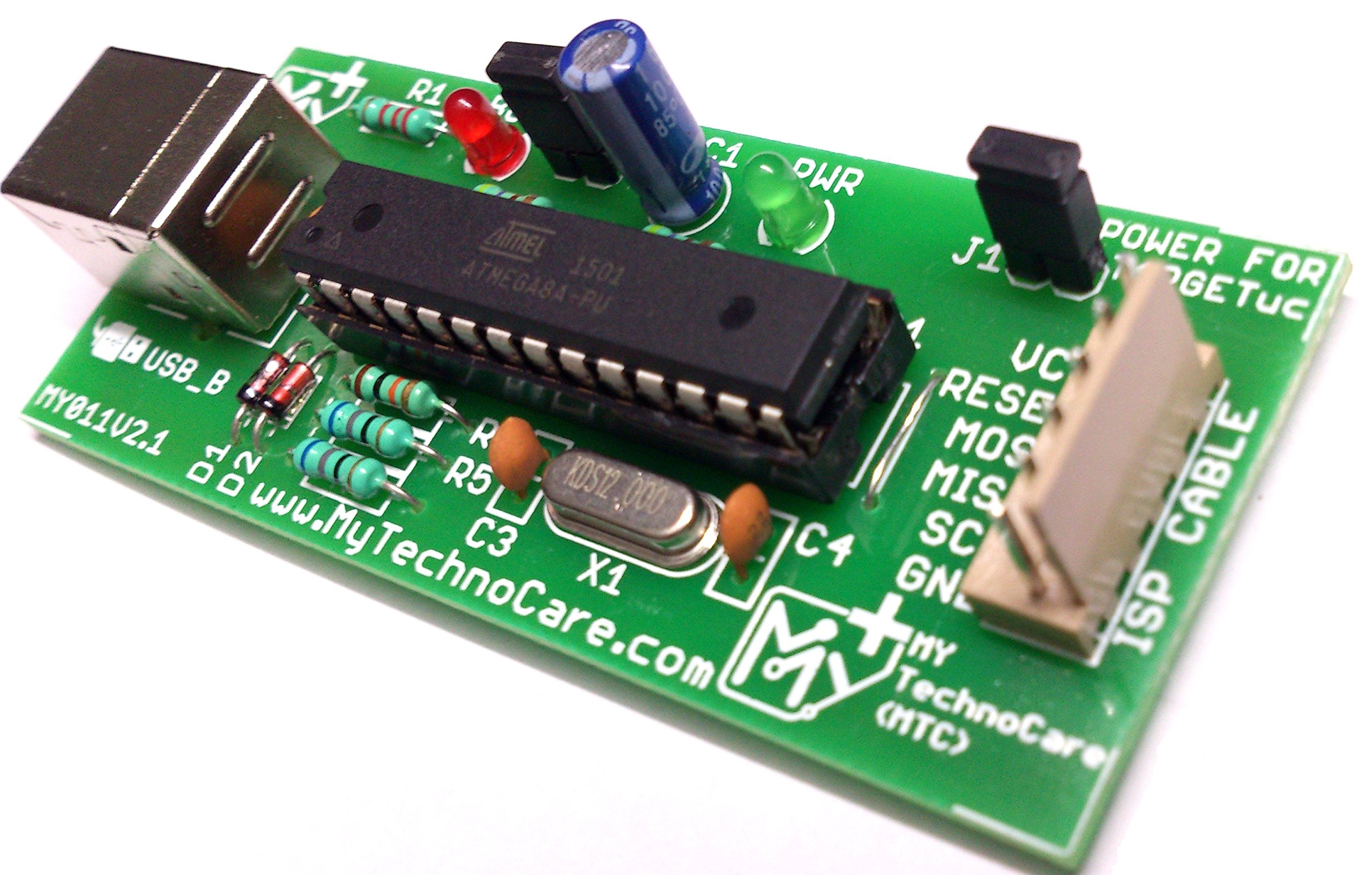

💻Dual 8051 & AVR USB ISP Programmer
🔗Onboard RS232 Serial Communication
Frequently Bought Together
Description
🚀 Elevate Your Embedded Game with the Ultimate 8051 + AVR Dev Board!
- SPEED MEETS COMPATIBILITY - Supports microcontrollers running up to 33 MHz with a max 5KB/s flash write speed, plus low clock speed targets under 1.5 MHz.
- PLUG PLAY POWER EFFICIENCY - Powered directly via USB at 5V, eliminating bulky adapters and enabling hassle-free prototyping anywhere.
- ROBUST COMMUNICATION INTERFACE - Integrated RS232 DB9 port ensures smooth, reliable serial communication with PCs, GPS, GSM modems, and more.
- UNIVERSAL DUAL MODE PROGRAMMING - Seamlessly program both 8051 and AVR microcontrollers with a single USB ISP programmer—future-proof your embedded projects.
- PRECISION ENGINEERING ON FR 4 PCB - High-quality, durable FR4 glass epoxy board with detailed pin labeling and mounting holes for professional-grade project setups.
The MY TechnoCare 8051 Development Board with AVR USB ISP Programmer is a versatile embedded systems kit designed for professionals and enthusiasts. Featuring a high-quality FR4 PCB, onboard RS232 serial communication, and dual support for 8051 and AVR microcontrollers, it offers seamless programming via USB without external power. Compatible with Windows, Mac OS X, and Linux, it supports a wide range of Atmel chips and delivers reliable performance with up to 33 MHz processor speed and 5KB/s flash write speed, making it ideal for advanced prototyping and embedded projects.
Specifications
| Brand | MY TechnoCare - Means Your Care |
| Manufacturer | MY TechnoCare, www.MyTechnoCare.com | Phone :+91-9913922434 | Email : mytechnocare.info@gmail.com | MY TechnoCare, Surat, Gujarat, India |
| Model | MY010V2.1 & MY011V2.1 |
| Model Name | MY8051 with Programmer |
| Model Year | 2013 |
| Product Dimensions | 16.5 x 10.5 x 3 cm; 135 g |
| Item model number | MY010V2.1 & MY011V2.1 |
| Memory Slots Available | Does Not Apply |
| Flash Memory Installed Size | 8 KB |
| Ram Memory Technology | DATA RAM 256 Bytes |
| Hard Drive Size | 8 KB |
| Hard Drive Interface | Unknown |
| Holder Capacity | Single 8051 40 PIN DIP Chip OnBoard |
| Operating System | Embedded Systems, Linux, User Defined Application Program or RTOS (Real Time Operating System), Windows 10, Windows XP |
| Processor Brand | Atmel |
| Processor Speed | 11.05 MHz |
| Processor Count | 1 |
| Processor Socket | DIP 40 Pin |
| Compatible Processor Types | ATMEL 8051&AVR ATmega (See IC List for Programmer) |
| Processor model number | AT89S52 for 8051 Board |
| Hardware Platform | PC |
| Graphics Card Interface | Unknown |
| Compatible Devices | ATMEL 8051 Processor IC, ATMEL ATmega AVR Microcontroller Chip, ATmeg IC ATmega8 ATmega8A ATmega48 ATmega48A ATmega48P ATmega48PA ATmega88 ATmega88A ATmega88P ATmega88PA ATmega168 ATmega168A ATmega168P ATmega168PA ATmega328 ATmega328P ATmega103 ATmega128 ATmega128P ATmega1280 ATmega1281 ATmega16 ATmega16A ATmega161 ATmega162 ATmega163 ATmega164 ATmega164A ATmega164P ATmega164PA ATmega169 ATmega169A ATmega169P ATmega169PA, ATmega2560 ATmega2561 ATmega32 ATmega32A ATmega324 ATmega324A ATmega324P ATmega324PA ATmega329 ATmega329A ATmega329P ATmega329PA ATmega3290 ATmega3290A ATmega3290P ATmega64 ATmega64A ATmega640 ATmega644 ATmega644A ATmega644P ATmega644PA ATmega649 ATmega649A ATmega649P ATmega6490 ATmega6490A ATmega6490P, ATmega8515 ATmega8535 Tiny Series ATtiny12 ATtiny13 ATtiny13A ATtiny15 ATtiny25 ATtiny26 ATtiny45 ATtiny85 ATtiny2313 ATtiny2313A Classic Series AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414 AT90S4433 AT90S4434 AT90S8515 AT90S8535 CAN IC AT90CAN128 PWM IC AT90PWM2 AT90PWM3 AT89SXX IC AT89S51 AT89S52 AT89S53 AT89S8252 AT89S8253, For Board 8051 , AT89S52 ,AT89S51, AT89SXXXX ,AT89CXX ,89V51RD2,8051 40 PIN IC Chipetc., See Discripton for List of Supported 8051 and AVR ICs |
| Special Features | Power Supply: 9 to12 Volt AC/DC (Board) | 5 Volt DC(Programmer) | 8051 Kit Support 8051,8052 40-Pin ICIOn-board RS232 for Easy Communication with PC & other Serial device GPS,GSM Modem | Extension Slot on Every Microcontroller Port Pin with Detail Labeling | GND&Vcc Bus(5V and 12V DC) to Supply Power External Device|Output LED (P2.0 Pin)|Input Switch P3.3|External Interrupt Switch (INT 1)|Four Mounting Holes 3.0 mm for Easy Mounting | 6 Pin Polarized ISP Interface Connector| High-Quality FR4 PCB, USB ISP Programmer support both 8051 & AVR IC (2in1)|5V USB Supply Option for Target so No Need Any External Supply|Read/Write Microcontroller Flash,EEPROM,Fuse,Lock Bit| 5KB/s Max Write Speed|SCK Option Support Targets with Low Clock Speed(<1.5 MHz) |
| Chipset Type | ATMEL AT89S52(Board) & AVR ATmega8(Programmer) |

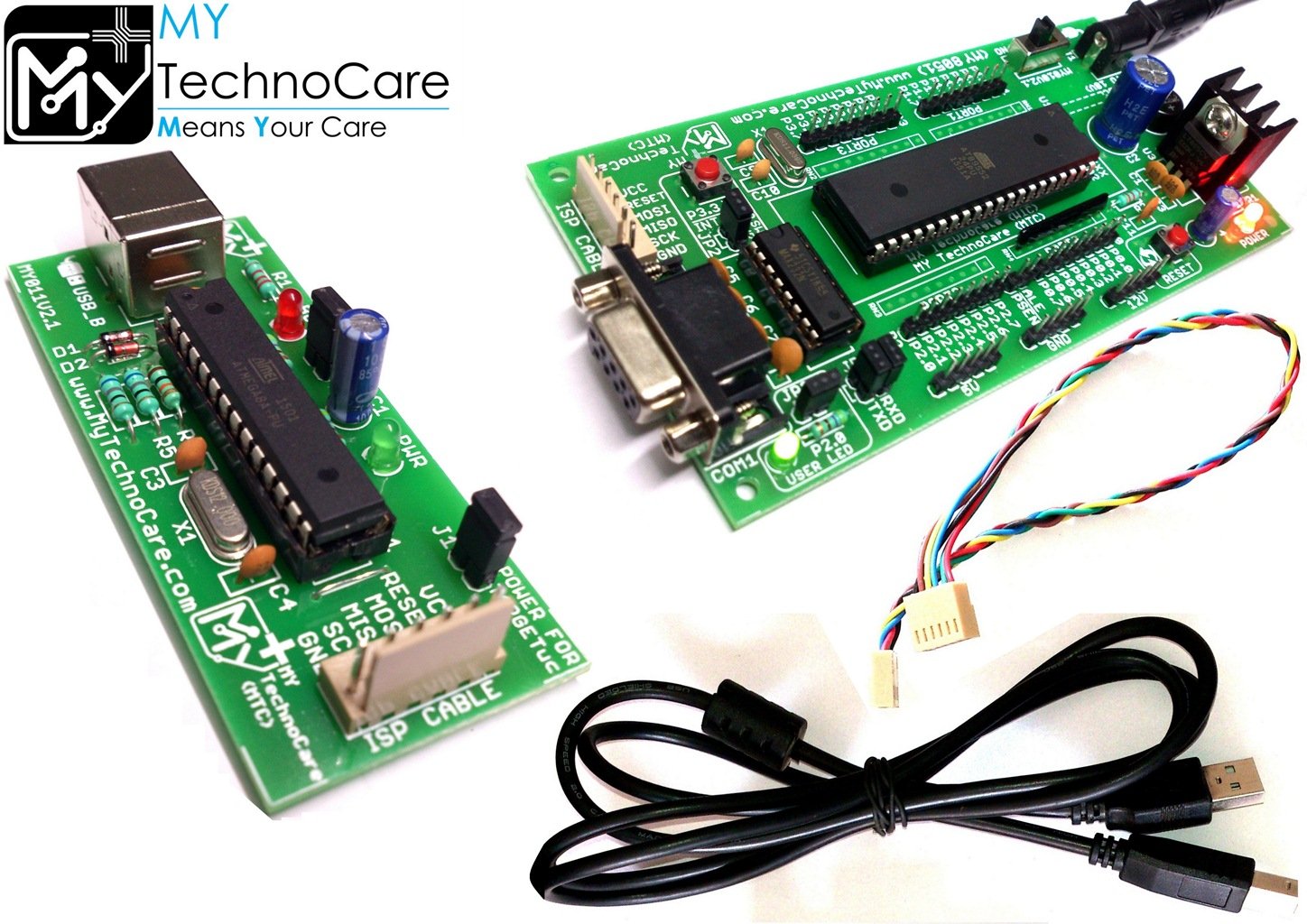

| Mounting Hardware | 1 x 6 pin Polarized Cable & 1 x USB AtoB Cable, 1 x MY TechnoCare MY010V2.1 8051 Prototype Development Project Board, 1 x MY TechnoCare USB ASP ISP 8051/AVR Programmer |
| Number of items | 1 |
| Remote Control Description | Can be Interface Using Infrared IR Sensor Receiver |
| Display Technology | LED |
| Standing screen display size | 3 Millimetres |
| Voltage | 5 Volts |
| Power Source | (DC for 8051 Board) & (USB for Programmer) |
| Batteries Included | No |
| Batteries Required | No |
| Write Speed | 5 KB/sec Maximum Write Speed | SCK Option For Low Clock<1.5 MHz & High Speed uC |
| Speed Rating | For AT89S52 (Up to 33 MHz) (On Board 11.0592 MHz) |
| Number of Ports | 4 |
| Total USB ports | 1 |
| Communication Interface | Cable |
| Input Type | 4 x General Purpos IO PORT,1x Serial RS232 DB9 PORT,1 x External Interrupt Switch(INT1),1 x User Switch(P3.3) | USB |
| Connector Type | RS232 DB9 |
| Movement Detection Technology | Can be interface Using Motion Sensor |
| Material | FR4 Glass epoxy | High Quality PCB |
| Form Factor | Hand-Held |
| Hand Orientation | Left,Right |
| Media type | Flash Hex File |
| Media Format | Download |
| Has Auto Focus | No |
| Programmable Buttons | Yes |
| Manufacturer | MY TechnoCare |
| Item Weight | 135 g |
