Convert Cylindrical Mechanical Locks Into An Electronic Access-Controlled Locking System.

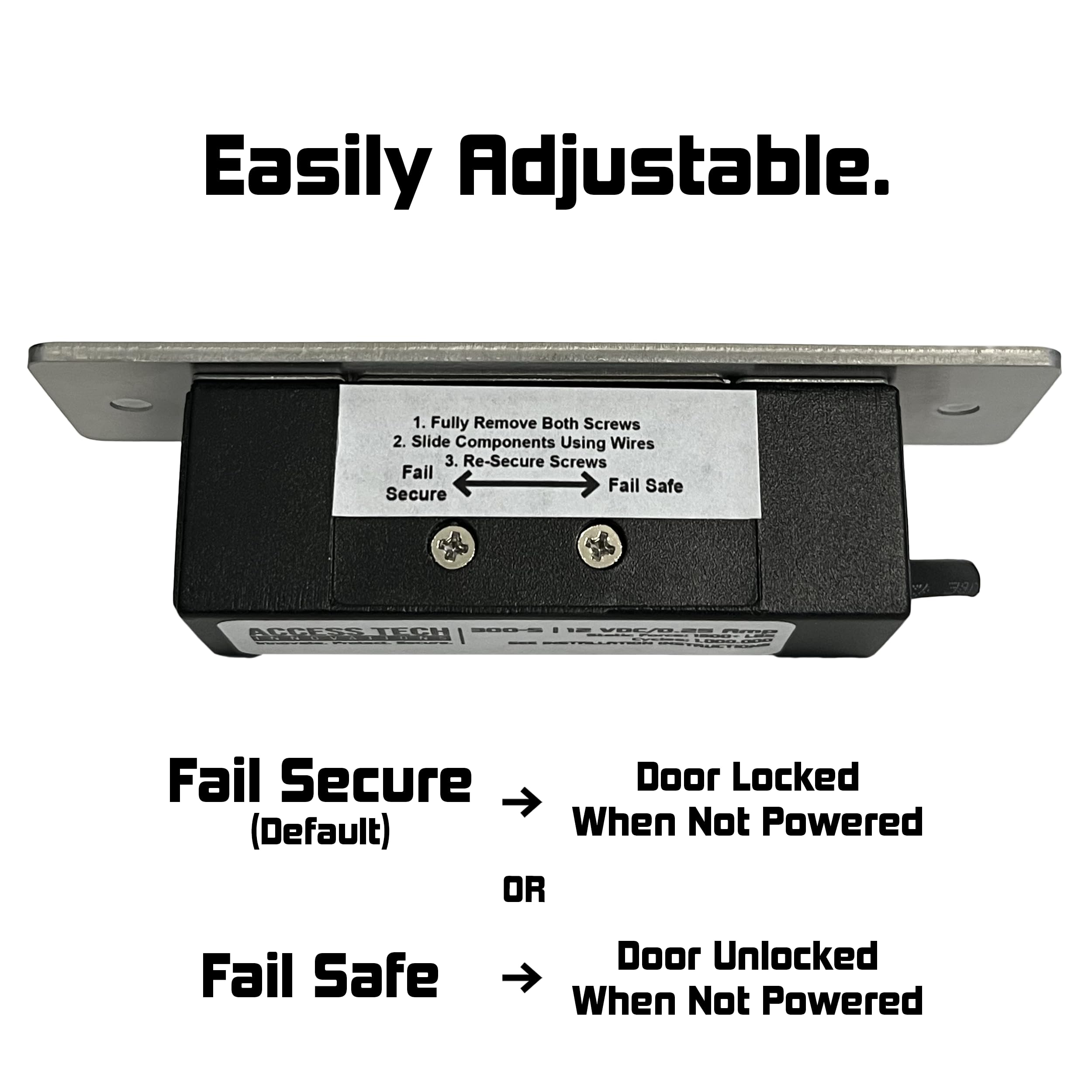

Two Operating Modes:

① Fail Secure (Default) – When Unpowered, strike is Locked

② Fail Safe – When Unpowered, strike is Unlocked

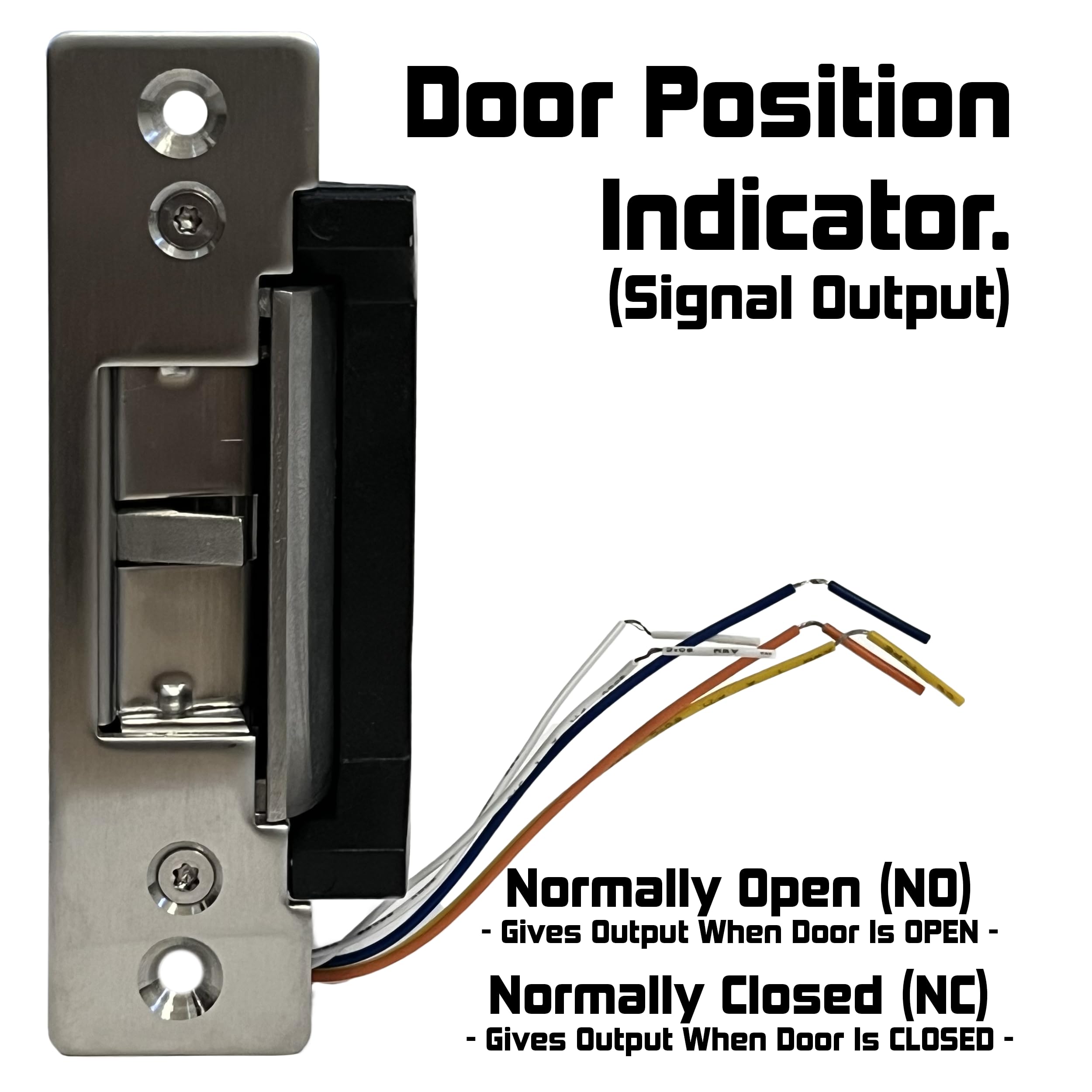

Signal Output (Door Position Indicator) – Built in door contact can be wired in two configurations

① Normally Closed (NC) - Gives an output when the door is Open

② Normally Open (NO) - Gives an output when the door is Closed

Specifications:

Model: 300-S

Operation: Normally Open (NO) / Normally Closed (NC)

Operating Power: 12VDC @ 250mA

Latchbolt Size: 5/8”

Static Strength: 1,500-lbs

Cycles: 1,000,000

Operating Temperature: 14°F~113°F (-10°C~45°C)

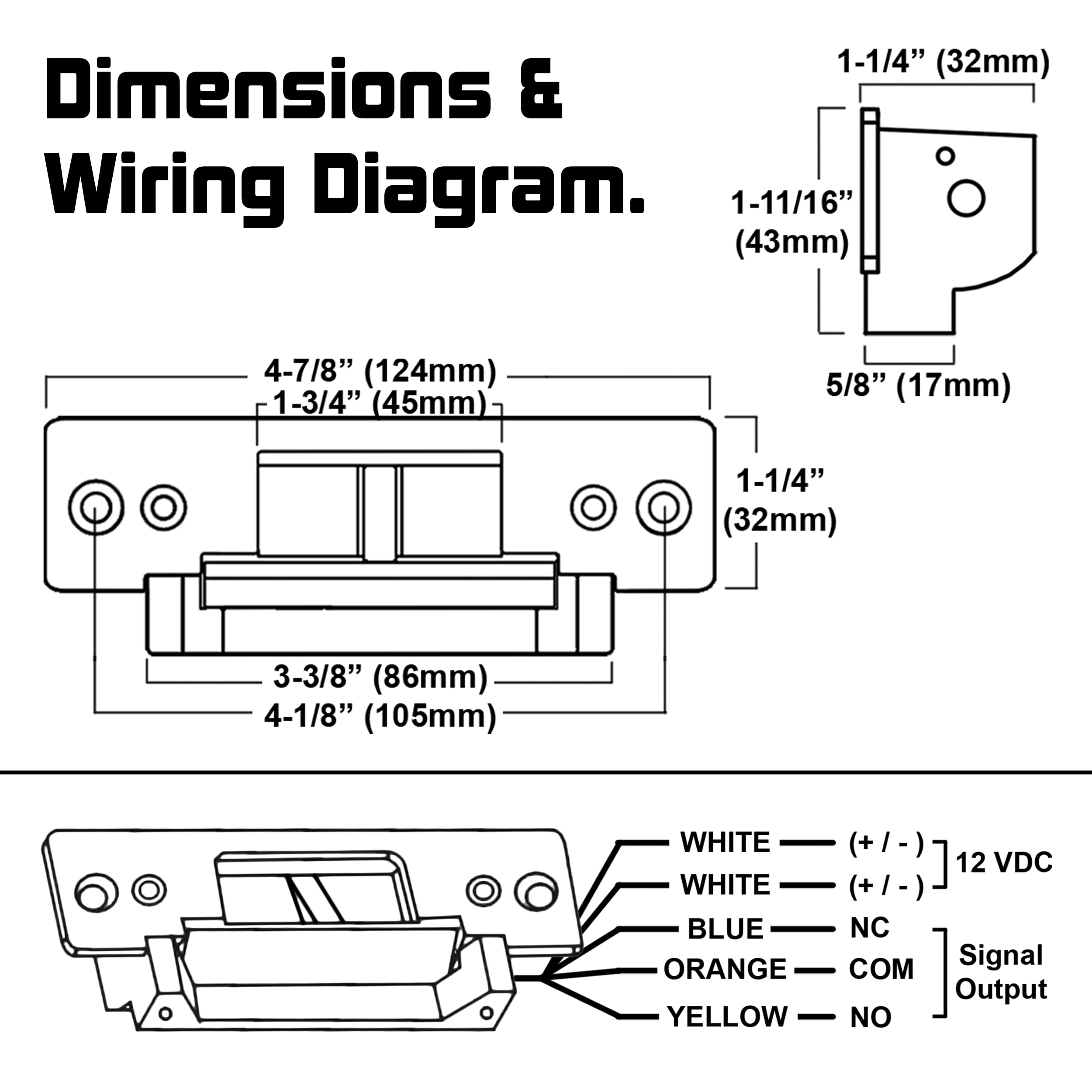

Dimensions (LxWxH): 4-7/8” x 1-11/16” x 1-1/4” (124x43x32mm)

Materials: Stainless Steel / Metal Alloy

Wiring:

White: Power (No Polarity) – Either one can be positive or negative

Blue: Normally Closed (NC) – Gives output When Door is Open

Orange: Common (COM) – Power Return Path

Yellow: Normally Open (NO) – Gives Output When Door is Closed

Diode:

Protects equipment from electromagnetic surges - Leg with White Stripe attaches to Positive Wire

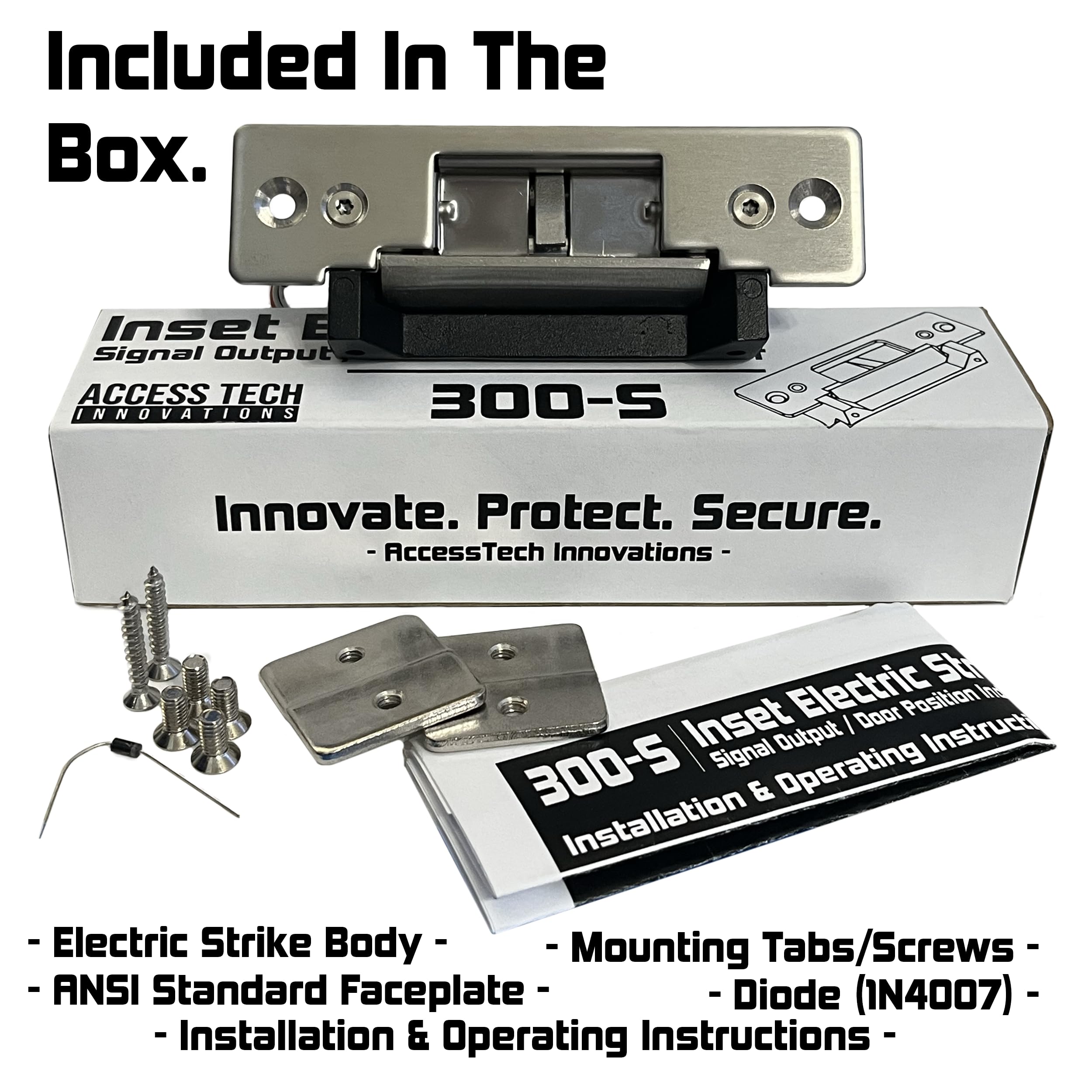

Package Contents:

1 x Electric Strike Lock Body

1 x ANSI Standard Faceplate (Ships Pre-Installed on Device Body)

2 x Mounting Tabs

4 x Mounting Screws

1 x Diode (1N4007)

1 x User Manual

⚠ Attention: We recommend the customer checks with their local fire authority to see any additional products are needed to comply with local fire codes. We are not responsible for any improper installation of our product(s) or liable for any fees that may be incurred by not complying with the local fire authority.

Manufacturer	AccessTech Innovations
Part number	300-S
Item Weight	363 g
Product Dimensions	12.37 x 4.29 x 3.18 cm; 362.87 g
Item model number	300-S
Size	4-7/8” x 1-11/16” x 1-1/4” (124x43x32mm)
Color	Silver and Black
Style	Modern
Finish	Stainless Steel
Material	Metal, Stainless Steel
Item Package Quantity	1
Number Of Pieces	6
Special Features	Fade Resistant
Included components	1 x ANSI Standard Electric Door Strike Device, 1 x Diode, 1 x User Manual, 2 x Mounting Tabs, 4 x Screws
Batteries Included?	No
Batteries Required?	No

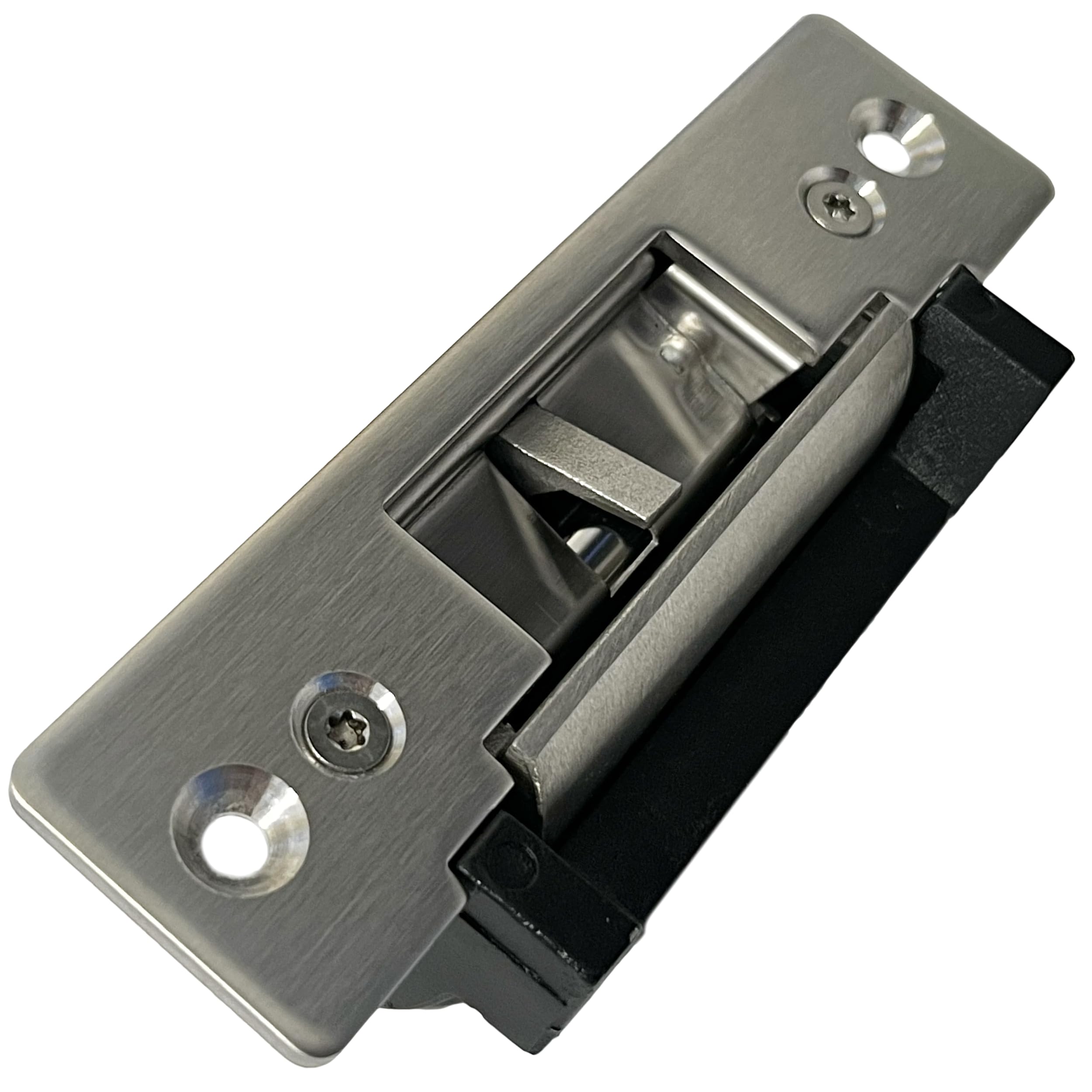

Heavy Duty Electric Strike Door Lock ANSI Standard with Signal Output/Door Position Indicator for Access Control System | Fail-Secure/Fail-Safe Adjustable | NO/NC Output | 12VDC Input Voltage
