Red Lion RL22G10-3W2V 4-inch Submersible Deep Well Pump with Control Box, 1 HP, 22 GPM, 3-Wire, 230-Volt, Steel, 14942409

Red Lion RL22G10-3W2V 4-inch Submersible Deep Well Pump with Control Box, 1 HP, 22 GPM, 3-Wire, 230-Volt, Steel, 14942409

Q: Do I need to install a check valve right above pump? It sseem like a very well made system except the plastic valve

I believe it has a built in check valve but I added another about 80’ above the pump. BTW, this pump lasted 1 day, and the pump bent way from the motor. I had to pull my pump again and sent the unit back for a refund. I went with a more expensive Franklin and it’s working like a charm.

Q: Where is this pump made?

I dont know but i needed a submersible pump and i "fliped the coin" for yes or no about purchasing this product and i ended up buying it in 2016, im glad i did it works great with no problems, in 2017 i purchased another one for onothet location based on the performance of the firtsone, both places have had exelent water flow and that my friend helped me make a buying desition. Made in china, mexico or united states it doesnt matter, the only thing i can say is am satisfied and i wont have buyers remorse about netherone of this two pumps. They are worth the price and worth the try.

Q: How many feet of wire come with the Pump?

There is about 4 to 5 feet of wire that comes with the pump.

Product ID: 8768012

Secure Transaction

Details

Brand
Red Lion
Color
Steel
Material
Stainless
Style
1 HP 22 GPM
Product Dimensions
3.9"L x 3.9"W
Power Source
Corded

💧22 GPM max flow rate

📏Fits 4-inch wells

⚙️1 HP motor power

Frequently Bought Together

Red Lion RL22G10-3W2V 4-inch Submersible Deep Well Pump with Control Box, 1 HP, 22 GPM, 3-Wire, 230-Volt, Steel, 14942409

Well Pump Wire Splice Kit, Submersible 3M™ Dual Wall Heat Shrink Tubing and Copper Connector for 4 Wires, #10#12#14 AWG.

SIMMONS 1350 Rubber Torque Arrestor, 1" to 1-1/4"

Description

💧 Elevate your water game with power and precision — don’t get left high and dry!

POWERFUL 1 HP MOTOR - Delivers reliable, energy-efficient pumping for demanding well depths.

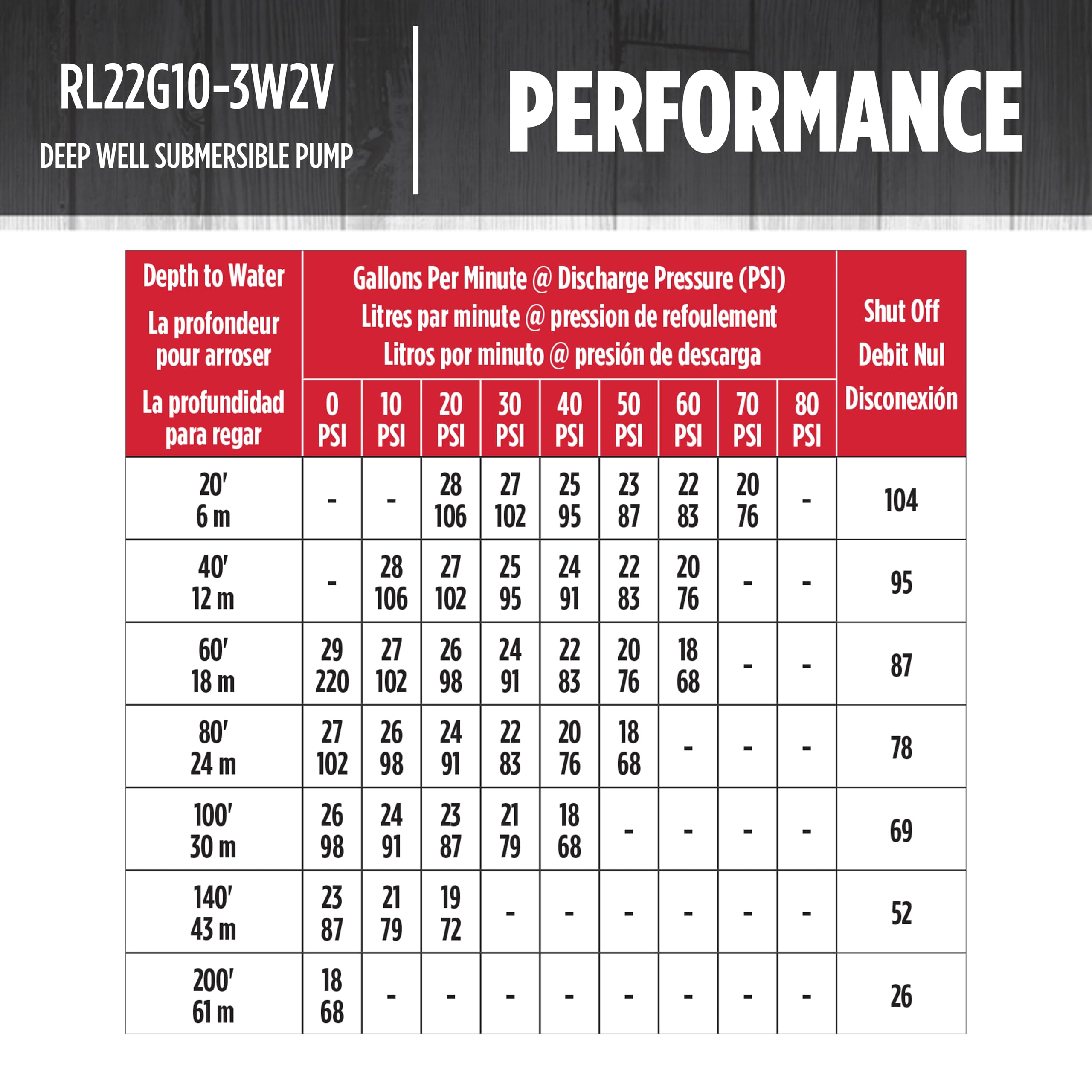

IMPRESSIVE 22 GPM FLOW RATE - Keeps your water supply steady with high-volume output at 30 PSI.
COMPLETE CONTROL BOX INCLUDED - Plug-and-play 230V system with UL-listed indoor/outdoor rated enclosure.
DURABLE STAINLESS STEEL HOUSING - Engineered for longevity and corrosion resistance in harsh environments.
BUILT IN CHECK VALVE SUCTION SCREEN - Prevents rapid cycling and debris damage, extending pump life.

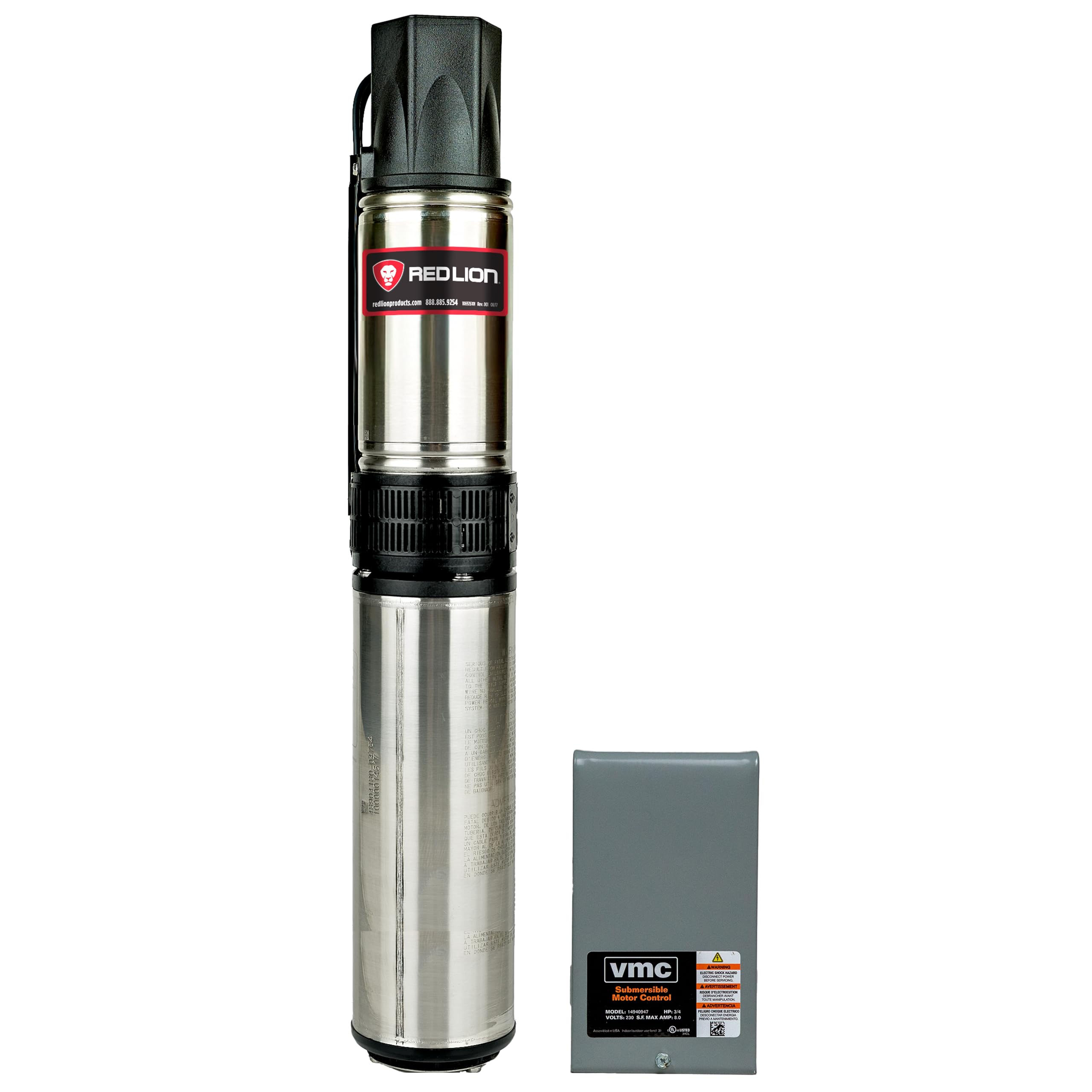

The Red Lion RL22G10-3W2V is a robust 1 HP submersible deep well pump designed for 4-inch or larger wells. It delivers up to 22 gallons per minute at 30 PSI and can pump from depths up to 260 feet. Featuring a stainless steel casing, built-in check valve, and suction screen, it ensures durability and protection against debris. The package includes a UL-listed control box for easy installation and reliable operation, making it a top choice for professionals and serious amateurs alike.

Specifications

Brand	Red Lion
Color	Steel
Material	Stainless Steel, Thermoplastic
Style	1 HP, 22 GPM
Product Dimensions	3.9"L x 3.9"W x 26.75"H
Power Source	Corded Electric
Item Weight	30 Pounds
Maximum Flow Rate	22 Gallons Per Minute
Maximum Lifting Height	260 Feet
Voltage	230 Volts
Horsepower	1
Global Trade Identification Number	00010121141858
Manufacturer	Red Lion
UPC	010121141858
Specific Uses For Product	Amateur, Professional
Part Number	14942409
Item Weight	30 pounds
Item model number	14942409
Is Discontinued By Manufacturer	No
Size	26.75"H
Shape	Cylinder
Wattage	1850 watts
Item Package Quantity	1
Measurement System	Imperial
Special Features	Fused disconnect switch
Included Components	Pump with motor and 48-inch lead wires, control box, installation manual, wire splice kit
Batteries Included?	No
Batteries Required?	No
Warranty Description	3 year manufacturer

Have a Question? See What Others Asked

Do I need to install a check valve right above pump? It sseem like a very well made system except the plastic valve

The ad here says orgin china but i thought redlion was out of oklahoma. so where is this product made?

Where is this pump made?

How many feet of wire come with the Pump?
